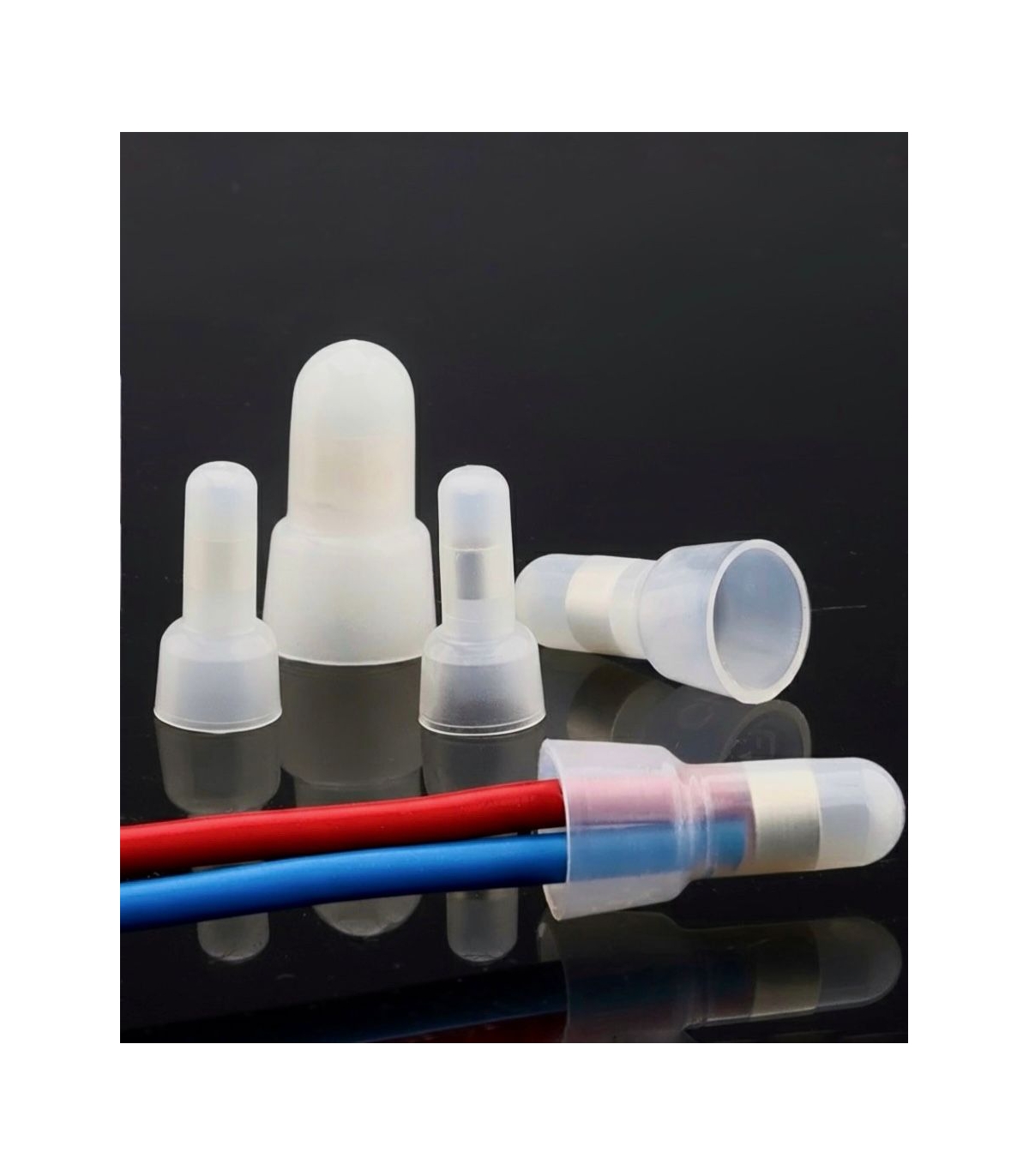

Close end caps are used to connect the open end of wires installed inside the junction box. It prevents the potential danger which may arise because of open end wires. It is an important protection element of the wire circuits.
You can choose the correct size from the table below:Choose your product code according to the table below.
Product Package Price.
Made of nylon 66 raw material.
Operating temperature of 105°C in UL 94/V2 norm,
It has the ability to withstand 300V energy.
Close-end crimp connectors is a processing element used for closing the open cable ends in the junction box. Thanks to the junction box terminal with ferrule, it is prevented that the exposed cables pose a danger in the future. It is an important element in terms of security.
PRODUCT CODE |
MAX CABLE SIZE |
SIZE (mm) |
PCS/BAG | ||
H | W | D | |||
CE-1 | 1,25 mm2 | 18 | 7,8 | 2,6 | 100 |
CE-2 | 2,00 mm2 | 20 | 9,5 | 3,1 | 100 |
CE-5 | 5,50 mm2 | 25,5 | 12,5 | 4,4 | 100 |
